Suspension Clamps for Overhead Lines

Factory Direct OEM Hardware

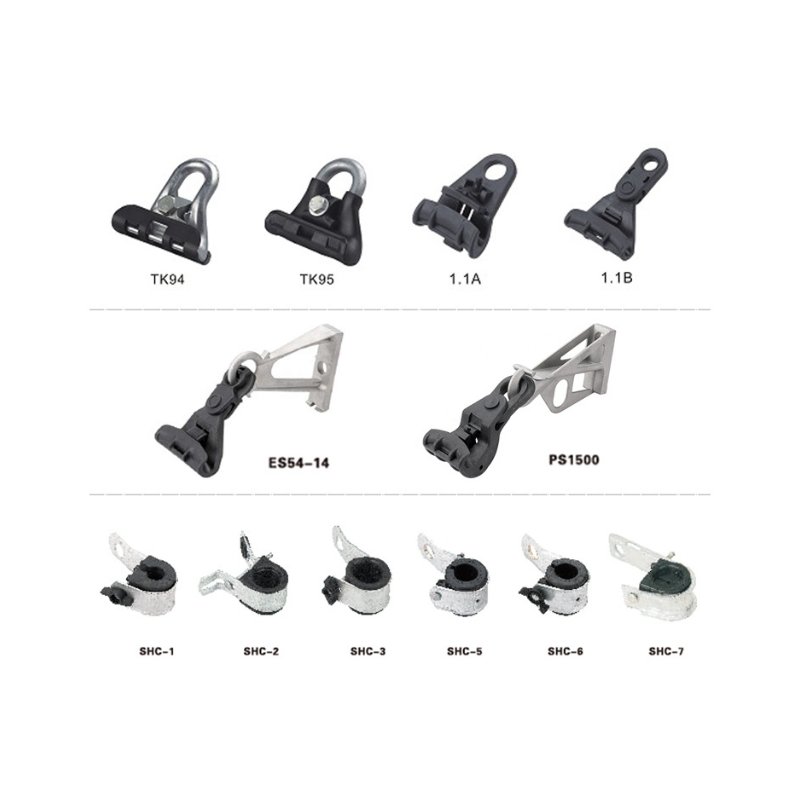

Suspension Clamp

Low-loss, anti-vibration support for overhead conductors and optical cables

Conductor OD coverage: 8–42 mm
Working load (vertical): 5–25 kN
Slip resistance: ≥ 15–60% of conductor RTS
Vibration control: With armor rods/dampers up to 1,200 m span
Materials: Aluminum alloy body, neoprene/EPDM liners, HDG or stainless steel hardware
Corrosion class options: C3–C5 (coastal/industrial)

Why choose us

Your Reliable Suspension Clamp Manufacturing Partner

As a dedicated metal fabrication manufacturer, we engineer brackets for structural reliability, corrosion performance, and wholesale logistics efficiency.

PRODUCT OVERVIEW

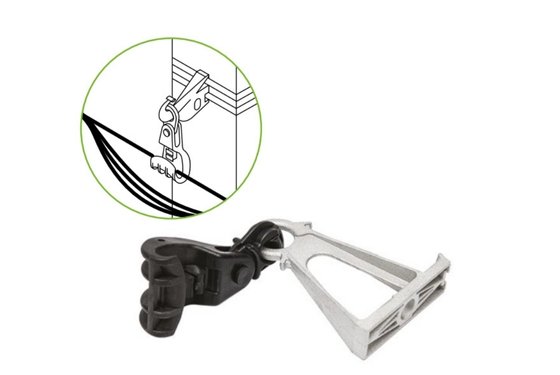

What is a Suspension Clamp?

A suspension clamp supports the conductor or optical cable at intermediate towers, carrying vertical loads and allowing limited angular deviation while minimizing electrical loss and fretting wear. Unlike strain clamps, it is not designed to carry full axial line tension at dead-ends.

Design options

Aluminum alloy body + rubber liner (standard energy-absorbing type)
Duplex/triangular yoke configurations for large loads or long spans
Armor rod suspension sets for ACSR/AAAC and OPGW to spread stress and reduce wear
ADSS specific: Short/long span suspension with cushion blocks to limit micro-bending

Specifications

Conductor/cable OD coverage (series):
- Conductors: 10–20, 16–24, 18–26, 22–34, 28–42 mm
- OPGW/ADSS: 8–12, 10–14, 12–16, 14–18 mm
Recommended vertical working load (WLL):
- Standard suspension: 5–15 kN
- Heavy-duty/long-span: 12–25 kN
Maximum slip load at seat (typical, with armor where applicable):
- 15–30% of conductor RTS (standard)
- 30–60% of conductor RTS (heavy-duty + armor rods)
Allowable angle (single point):
- Standard: up to 15°
- With double suspension or special fittings: up to 30°

Electrical performance (conductors):
- Low temperature rise design; current path per IEC 61284 limits
Liner materials:
- Neoprene/EPDM UV-resistant rubber; polymer cushions for ADSS
Hardware:
- U-bolts, shackles, yoke plates in hot-dip galvanized steel; optional A2/A4 stainless
Corrosion protection:
- HDG ≥ 70 μm typical; options to C5 with Dacromet + sealing or full stainless kits
Fatigue/vibration:
- Validated with Stockbridge dampers; Aeolian vibration and galloping mitigation guidance available

Selection guidance

Keep OD within middle of clamp range for best grip and reduced wear
Long spans or high wind/ice: select heavy-duty body + armor rods + dampers
ADSS: match jacket hardness; use specific cushions to avoid micro-bending
Corrosive sites (C4–C5): prefer A4 stainless fasteners or Dacromet with isolation
Angle > 15°: use double suspension or angle-specific hardware

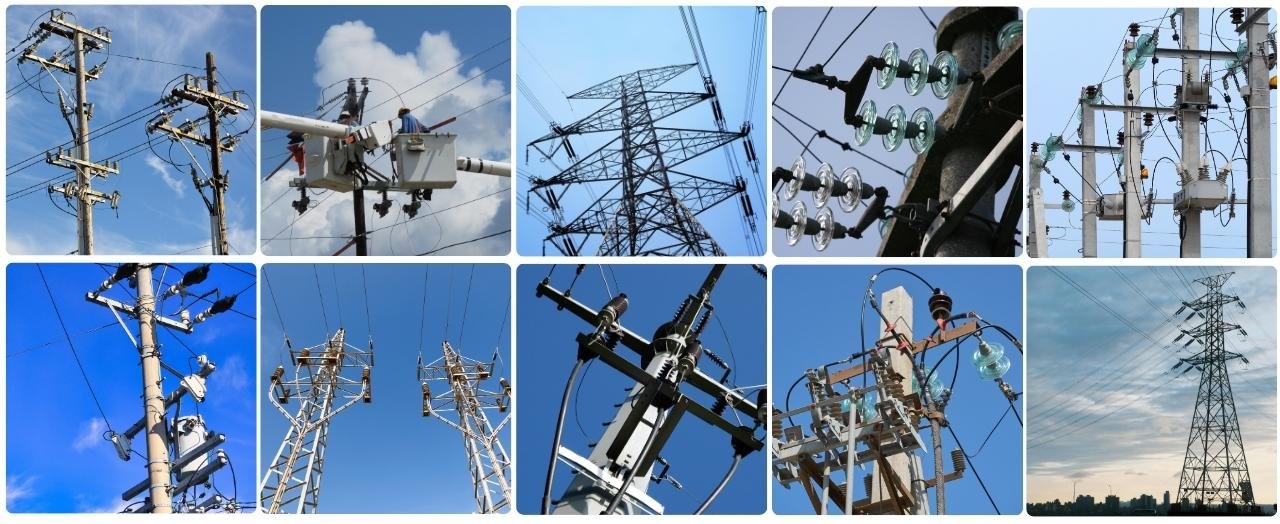

Applications

Versatile Applications

* Provide your project drawings—we convert to manufacturable bracket specs.

See All Products

FAQ

Plumbing Help Desk: FAQs

Looking for more solutions.

Series cover 10–20 to 28–42 mm for conductors and 8–18 mm for OPGW/ADSS variants.

Use heavy-duty for long spans, high wind/ice, or large conductors; pair with armor rods and dampers.

Suspension clamps support vertical loads at spans; strain clamps carry axial tension at dead-ends.

Typically up to 15° for a single suspension; up to 30° with double suspension or special hardware.

Recommended for medium/long spans or abrasive environments to reduce fretting and increase slip load.

Yes—use dedicated suspension sets with proper cushions/liners and, for OPGW, armor rods.

HDG steel hardware standard; options include Dacromet coatings and A2/A4 stainless for C5 environments.

5–15 kN for standard units and 12–25 kN for heavy-duty long-span models.
