E-Type Lashing Wire Clamp
The E-Type Lashing Clamp is the definitive one-piece, permanently staked termination solution for aerial cable installations. Designed where adjustability is not required but absolute, lifelong security is, its riveted/staked construction eliminates any risk of field loosening or tampering. Once installed, it becomes a fixed, maintenance-free part of the infrastructure, guaranteeing the lashing wire’s tension and position for the life of the span.
-
Permanently Staked, Zero-Maintenance
-
Dual-Corrosion Defense
-
Engineered for Ultimate Load-Holding
-
Optimized for Standard Strands (1/4″-3/8″)

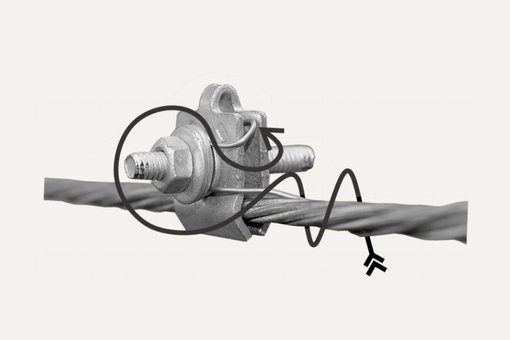

What Is an E-Type Lashing Wire Clamp?
The E-Type Lashing Wire Clamp is a one-piece, permanently sealed termination device engineered for overhead cable networks. Its sole purpose is to create an irreversible, maintenance-free mechanical lock that secures a lashing wire or ground wire to a supporting messenger strand.
In aerial construction, traditional clamped connections can loosen over time due to vibration, risking cable slippage, sag, and network failure. The E-Type clamp is the definitive solution engineered to eliminate this risk entirely.
How It Achieves Permanent Security:
The key is its staked (or riveted) stud assembly. During manufacturing, after the nut is tightened to the precise specification, the stud is mechanically deformed—a process akin to a cold weld. This makes it physically impossible for the nut to rotate or loosen on its own, transforming the clamp into a sealed, tamper-proof unit.
This clamp prioritizes absolute, lifelong security over field adjustability. Unlike a D-Type clamp (which uses two adjustable nuts), the E-Type is designed to be installed once and forgotten. It requires zero maintenance or re-tightening, making it the ideal, reliable choice for standard, high-volume installations where long-term, hands-off reliability is paramount.
Specifications
Model: SW-LWC-E
Type: Termination Clamp for Lashing Wire
Clamping Range: 1/4″ to 3/8″
Key Feature: Permanently Staked Stud Assembly
Jaw Material & Finish: Steel, Dacromet (Zinc Chromate) Coated
Stud Material: Grade 5 Hardened Steel
Nut & Washer Material: Grade 2 Steel
Hardware Finish: Mechanically Galvanized
Design Files: Product drawings available in PDF, DWG, STEP formats
Key Features
Permanently Staked, Zero-Maintenance Design
The stud is mechanically deformed (staked) after assembly, creating a cold-weld effect that cannot loosen. This eliminates the need for torque checks or re-tightening, saving long-term labor costs.Dual-Corrosion Defense System
Dacromet-coated jaws combined with mechanically galvanized hardware provide a synergistic barrier against rust that outperforms standard galvanizing, ideal for harsh environments.Engineered for Ultimate Load-Holding
Features a Grade 5 hardened steel stud as its core, ensuring the clamp’s strength exceeds the demands of the application, providing a critical safety margin.Optimized for Standard Installations
Fits the most common messenger strand sizes (1/4″ to 3/8″), making it the go-to, reliable choice for volume deployments.
Applications
- Termination of lashing wire for communication cables (ADSS, OPGW) and drop wires.
- Securing auxiliary cables, equipment, or markers on power distribution lines.
- Any overhead installation requiring a reliable, permanent termination of lashing wire to a messenger strand.
Why Choose E-Type over D-Type?
Choose the E-Type (This Product) when your priority is a permanent, non-adjustable, and tamper-proof termination for standard applications. It’s ideal for high-volume, one-time installations where long-term reliability without maintenance is paramount.

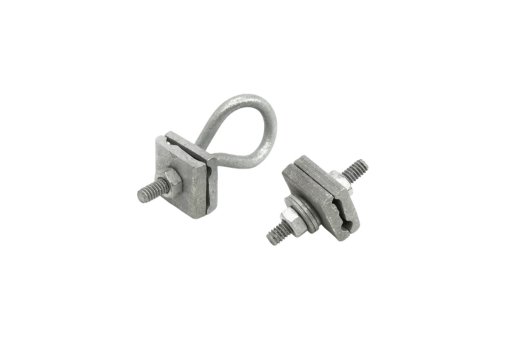

Choose the D-Type when you require field-adjustable tension or the possibility of future disassembly and re-use of the clamp.
Quality Assurance
All products are manufactured under strict production controls with monitored key dimensions and coating processes. Material or process documentation can be provided upon request.
Drawing

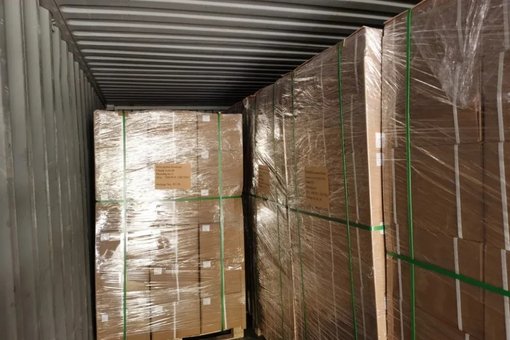

Package
Contact Now
Ready to Specify or Request a Quote?
Contact our engineers today with your project details or insulator type for a prompt recommendation and competitive pricing.
