As a dedicated metal fabrication manufacturer, we engineer brackets for structural reliability, corrosion performance, and wholesale logistics efficiency.
Target stamping tolerance ±0.3–0.5 mm to reduce rework.
G90 / G185 / HDG / 304 / 316 / Duplex / Powder aligned to exposure class.
Engineering-driven hole layouts remove redundant fasteners.
Logo, color, barcode, kit bundling, retail packaging.

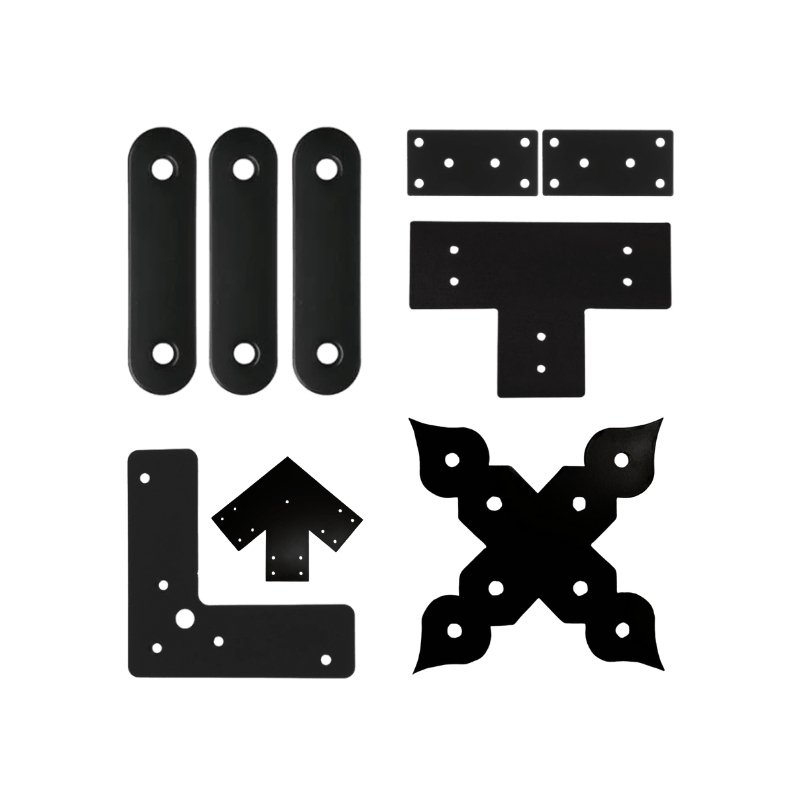

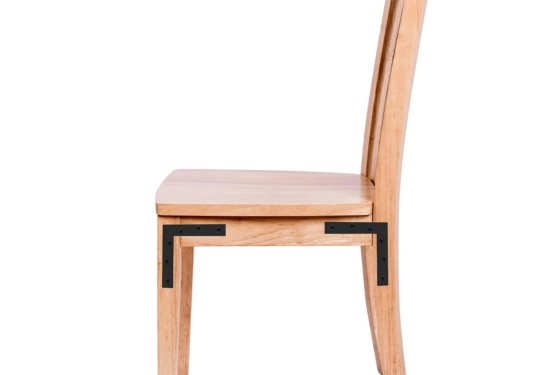

A flat bracket (also referred to as a mending plate or reinforcement plate) is a planar metal connector with pre-punched (and sometimes slotted) holes used to join, splice, stabilize or locally reinforce two pieces of timber, panels or light framing members that lie in the same plane. Its primary function is to spread shear and maintain alignment—not to serve as a primary load-bearing connector like certain engineered joist hangers or structural angle connectors.
Concept/Drawing
Rapid Sample (7–10 days)
Tooling (if needed)
Pilot Run
Mass Production
QC & Packing Shipping & Docs
* Provide your project drawings—we convert to manufacturable bracket specs.
Looking for more solutions.
They are mainly auxiliary for distribution and reinforcement. Primary structural loads require engineer verification.
Consider shear vs tension, timber section, screw diameter, fatigue cycles. We can supply a thickness guidance sheet after application details.
Yes. Provide prohibited zones and load path; we design an optimized pattern to reduce fasteners.
HDG (hot-dip galvanized) has thicker zinc for outdoor / treated lumber; G90 is continuous galvanized for indoor or light exposure.

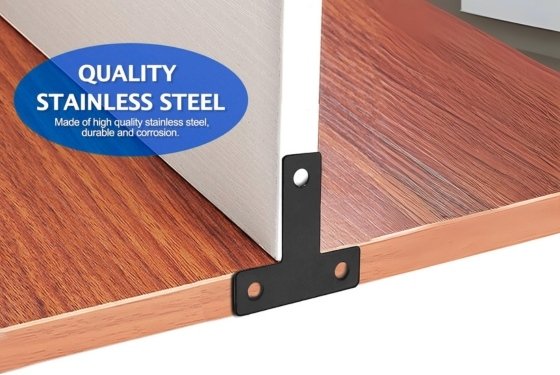

316 includes molybdenum for higher chloride resistance (coastal / high salt); 304 suits general outdoor.

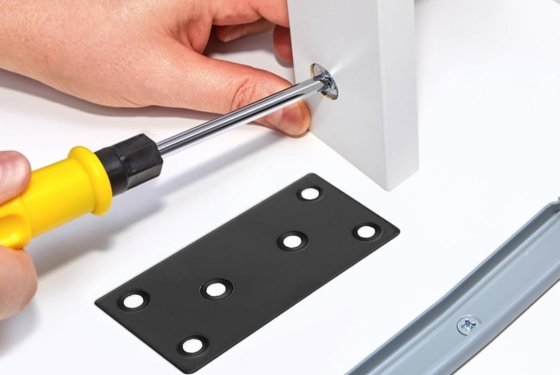

Use slot + round combination, tighten round holes first, then final torque on slots.
Yes: Straight / L / T + screws + retail card/box + barcode/logo.
Mixed SKU loading, hole pattern optimization (fewer screws), Duplex replacing some stainless, packaging density improvements.
Tell us your size, thickness, finish, quantity and target market; we reply within 24 hours and provide flexible solutions tailored to your project needs.
