Stop losing margin to inconsistent quality, limited corrosion options, and slow customization cycles. Our engineered joist hangers combine verified load performance, multi-environment finishes, and supply-chain efficiency—built to help wholesalers, distributors, and project suppliers win repeat business with lower total cost.
Progressive dies + in‑process gauging deliver repeatable hole spacing (±0.5 mm) and reliable seat fit, reducing claim handling overhead.
Offer G90, G185, hot-dip, powder, duplex, 304/316 so you match climate & treated lumber needs without surplus inventory.
Mixed-SKU stacking plan + buffer stock
Skewed / concealed / custom hole pattern + embossed or laser logo + black or RAL powder creates shelf and spec differentiation.

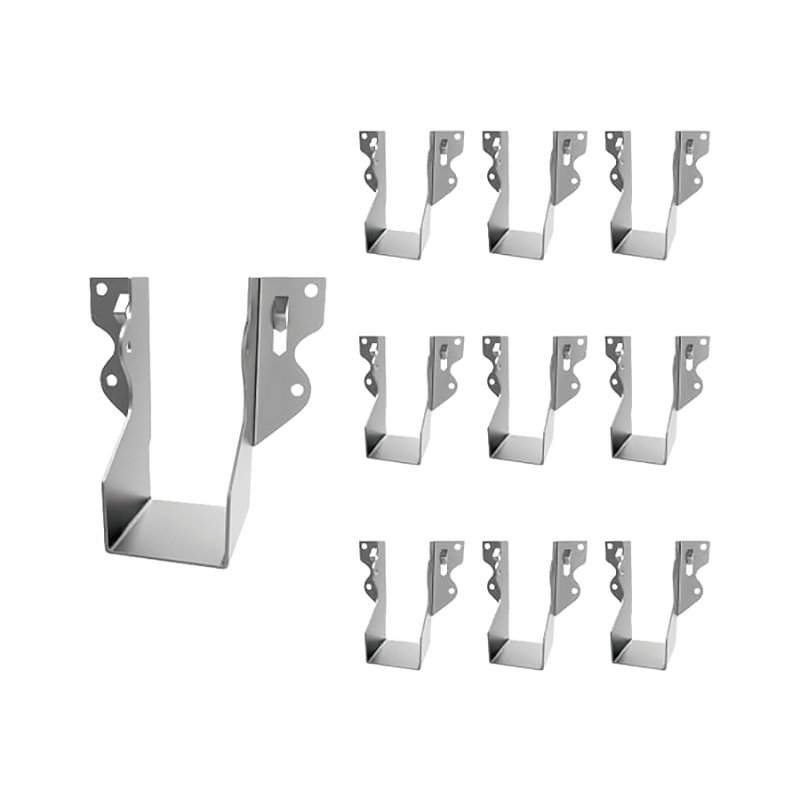

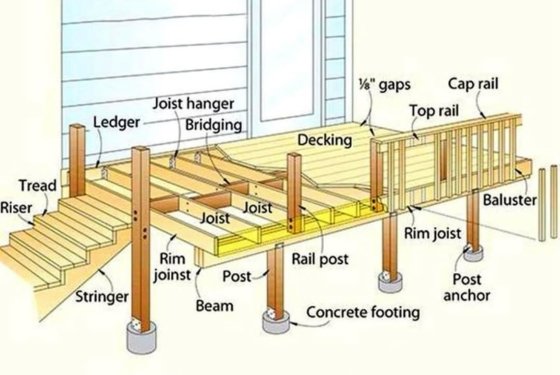

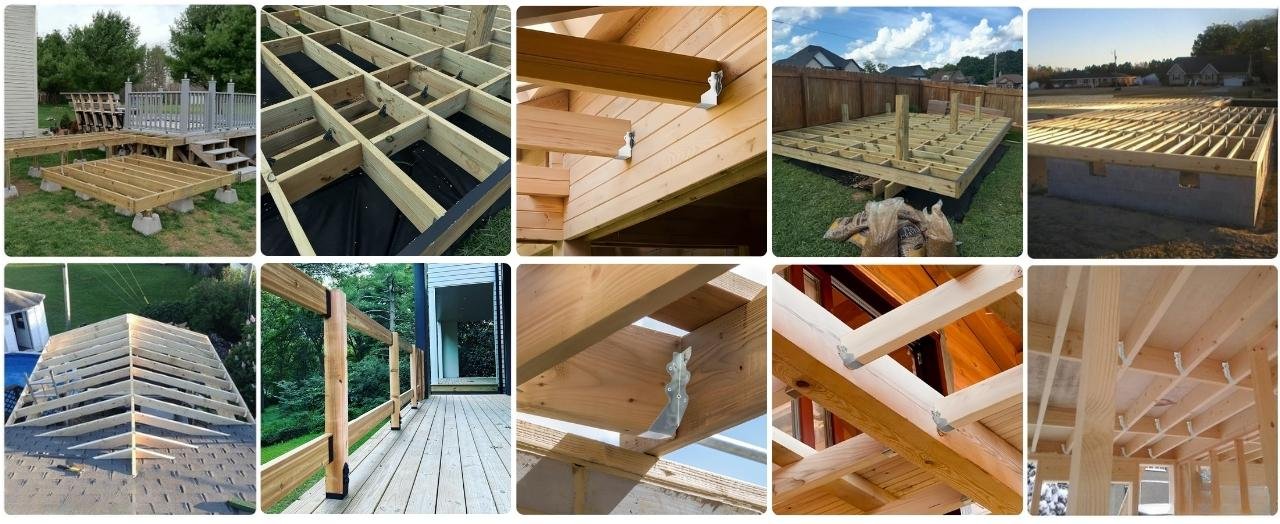

Our joist hangers are structural connectors for attaching timber joists to beams, ledgers, or posts in decks, pergolas, light-framed buildings, and modular wood systems. We manufacture standard face-mount, top-mount, concealed flange, and skewed models in multiple gauges to match load and environment requirements.
Suit for woodworking component manufacturers, hardware wholesalers, building materials chains, project and contractor procurement teams. Support bulk procurement and OEM customization.

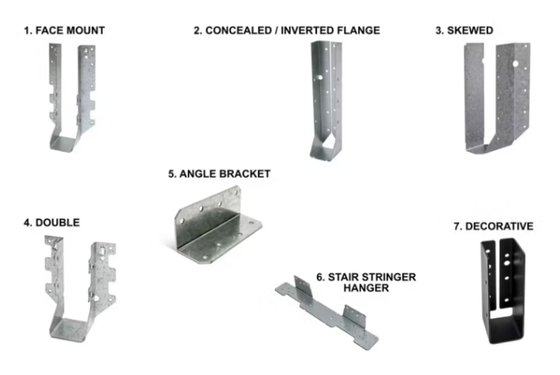

• Face-Mount Joist Hangers
• Top-Mount / Saddle Type
• Concealed Flange (clean visible fascia)
• Skewed (left/right up to 45°)
• Heavy Duty (reinforced seat / thicker gauge)
• Mini / Narrow Series
• Stainless Steel Series (304 / 316)
• Color / Black Powder-Coated Series

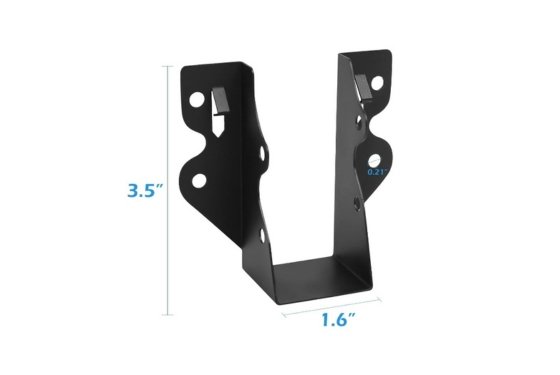

Steel Gauge: 20 ga / 18 ga / 16 ga (heavier optional)
Common Joist Widths (mm / in): 38 (1.5″), 44 (1.75″), 50 (2″), 64 (2.5″), 89 (3.5″), 140 (5.5″)
Height Range: 75–250 mm (custom over 250 mm)
Holes: Standard nail pattern; optional screw / elongated / reinforced holes
Base Material: ASTM A653 G90 (option G185 / post-fabrication hot-dip) / 304 / 316 stainless
Finishes: Galvanized / Hot-Dip / Powder (RAL) / Duplex (HDG + Powder)
Recommended Fasteners: 10d or 16d structural nails / structural screws
* Provide your project drawings—we convert to manufacturable bracket specs.
Looking for more solutions.

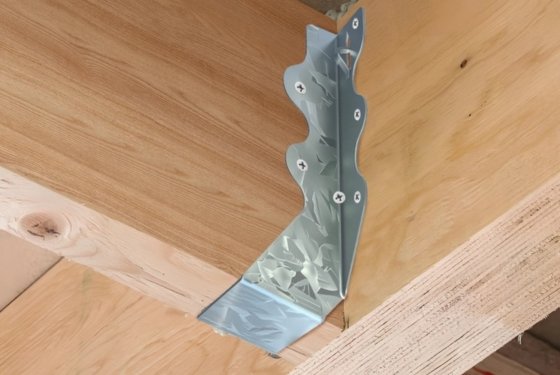

Joist hangers are used to connect wooden joists to beams, providing strong and reliable load support.
G90: General exterior / standard protection.
G185 / Hot-Dip: Treated lumber / higher corrosion risk.
Powder over HDG: Aesthetic + dual barrier protection.
Stainless 304: Mild coastal / light chemical exposure.
Stainless 316: High salt / aggressive corrosion / premium builds.
Black Powder: Visible architectural or landscape features.
Yes, heavy-duty hangers with reinforced ribs are suitable for industrial and structural applications.
Yes, our joist hangers are manufactured to meet international construction standards.
Yes, they come with pre-punched holes for quick installation with screws or nails.
Yes, custom sizes, finishes, and hole patterns are available upon request.
Yes, galvanized and stainless steel models are designed for outdoor durability.
Yes, we support wholesale orders and ship worldwide.
Tell us your size, thickness, finish, quantity and target market; we reply within 24 hours and provide flexible solutions tailored to your project needs.
